Magnetic Levitation Express Troubleshoot

IMPORTANT: *Please use fresh out of the box batteries. Alkaline batteries  are recommended*

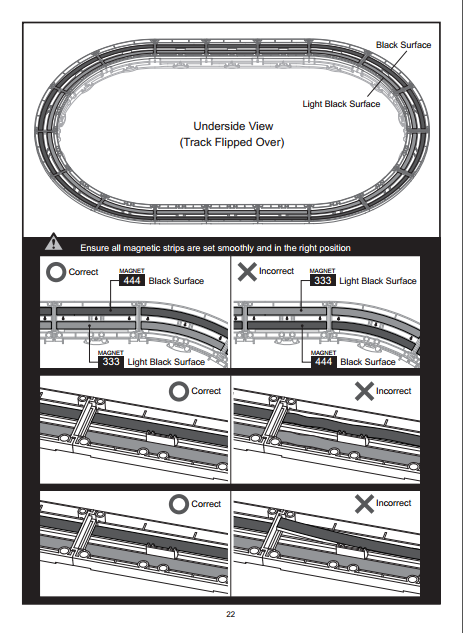

If the train runs off from the tracks, go back to page 21, 22 and check if all tracks are installed correctly. Go back to page 22 and check the underside view of the track to ensure all the magnetic strips are on the correct side: all the shiny magnets (444) Black Surface are on the outer side and the matte magnets (333) Light Black Surface are on the inner side. Also, go back to " How to play " and check if playing areas are set properly.

Also make sure that the magnets on the underside of the track are pressed down firmly and not sticking out or popping out from the track.

Check videos below for help with assembly issues.

111 SET

222 SET

333 SET

444 SET

DISASSEMBLY

F1

F11

F14

TRACK ASSEMBLY AND DISASSEMBLY

WIRES

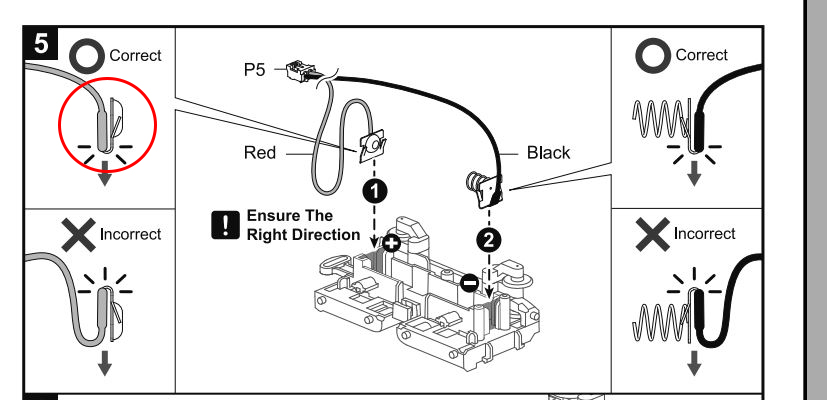

If the light doesn't turn on you may have incorrectly inserted the connector.

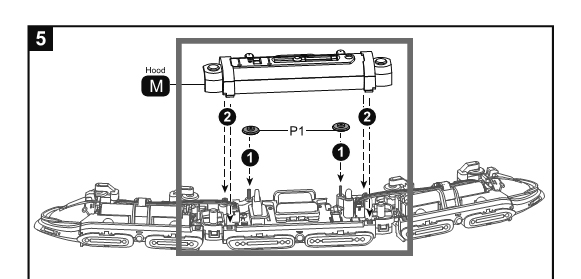

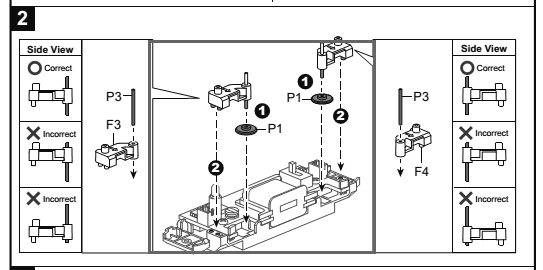

If the light turns on and the train floats/levitate but does not run make sure all bearings are installed and lying flat and not at an angle

- Pg 35 Step 2

- Pg 39 Step 5

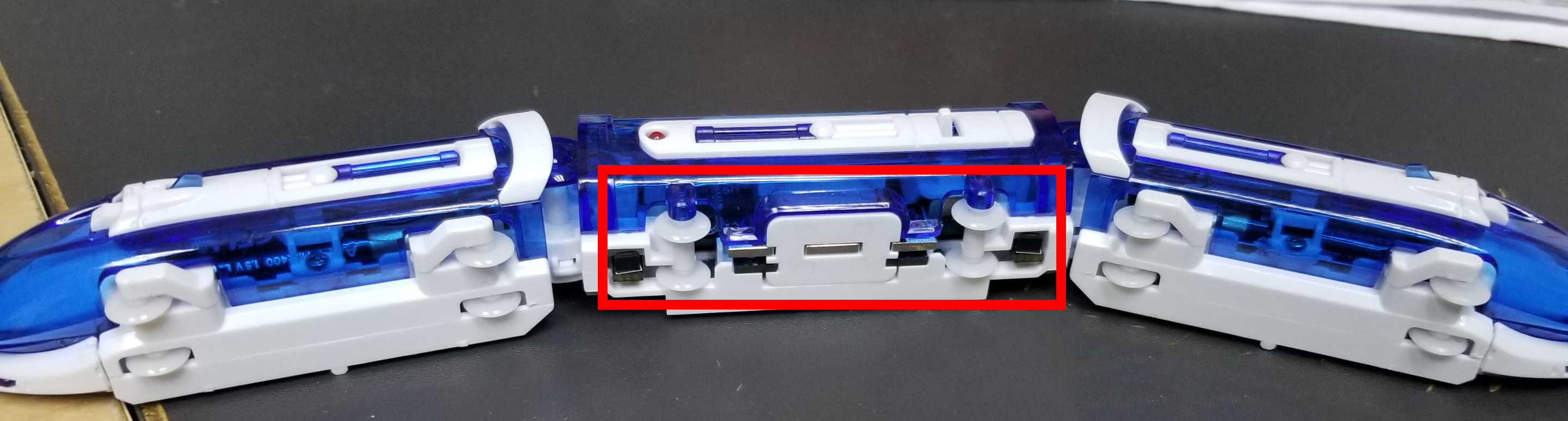

example of train with all bearings
