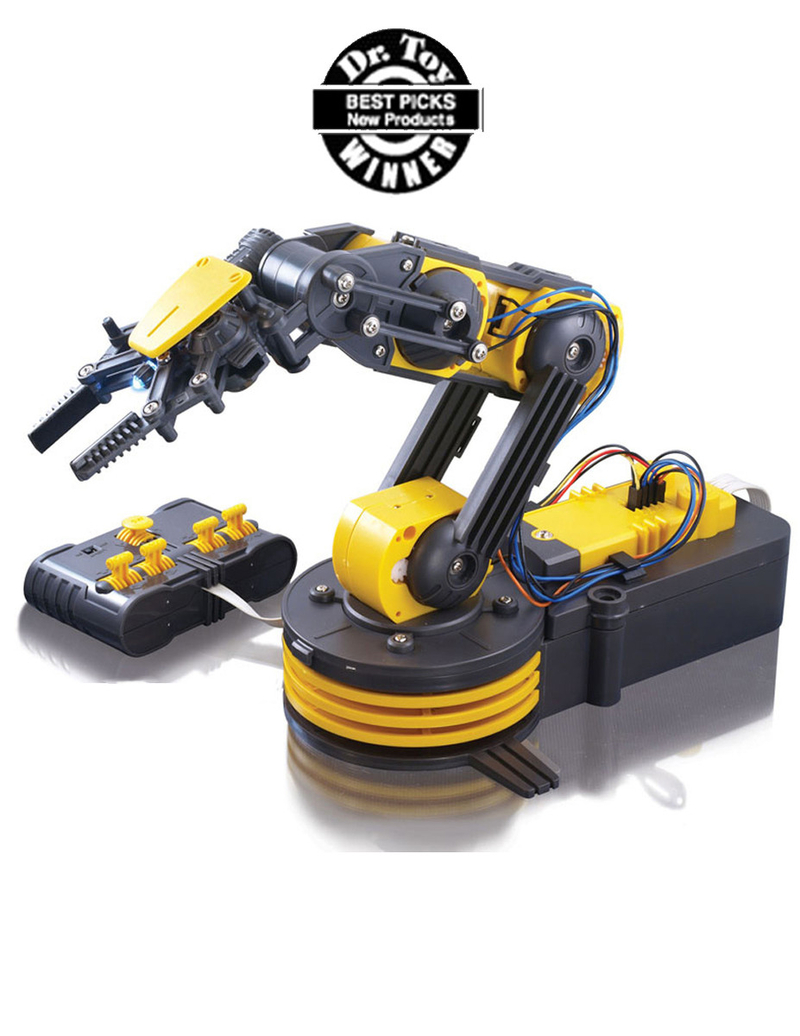

OWI has made robotic arm technology more affordable without compromising quality. With Robotic Arm Edge, command the gripper to open and close, wrist motion of 120 degrees, an extensive elbow range of 300 degrees, base rotation of 270 degrees, base motion of 180 degrees, vertical reach of 15 inches, horizontal reach of 12.6 inches, and lifting capacity of 100g. WOW! Some of the added features include a search light design on the gripper and a safety gear audible indicator is included on all five gear boxes to prevent any potential injury or gear breakage during operation. How does this equate to fun?
Check out what the Chester County Career Center has to say: Blog

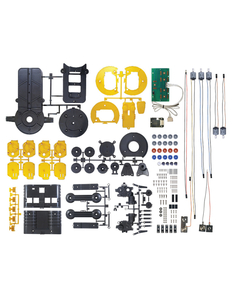

Ages: 13+Dimensions: 9" x 6.3" x 15" No. of Pieces: 197Batteries Required: 'D' size x 4 (Not Included)
Item
Remarks
Operating Voltage
DC3V
No Load Current
255mA Max.
No Load Speed
12340rpm ±12%
Starting Voltage
Starting Current
Stall Torque
60g-cm
Stall Current
3170mA
End Shaft ( Metal Case Side)
9.4 ±0.5mm
End Play
0.05~0.60mm
End Shaft (End Bell Side )
Motor Length
25.0 ±0.3mm
Motor Diameter
Φ20 ±0.2mm
End Bell Case Width
Φ15.1 ±0.15mm
Bearing Case Diameter
Φ10 +0.05/-0.25mm
Bearing Case Width
8.9 ±0.25mm
Tolerance : ±12%
